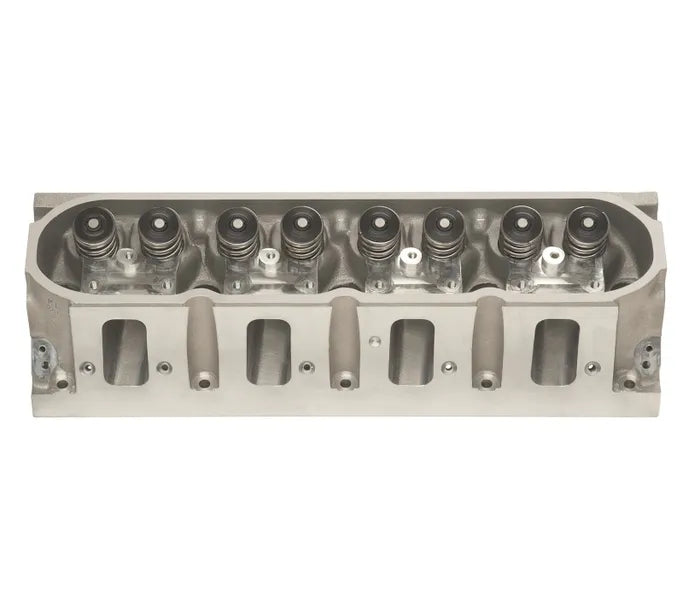

1171000 BRODIX BR7 262 LS7 ALUMINUM CYLINDER HEADS PACKAGE ASSEMBLED (2 HEADS)

BRODIX CYLINDER HEADS - LS7 - BR7 - 262cc - CNC PORTED - 71cc CHAMBER - 6 BOLT - ASSEMBLED - 1171000

 LS7 Brodix BR7 12 Degree Aluminum Cylinder Heads, 262cc Intake Runner, 71cc Combustion Chamber, 2.204 Intake 1.614 Exhaust Valves, Assembled Heads,.700" Lift Springs, CNC Ported Combustion Chambers, 2 Heads

BR 7™ LS7 Compatible Series Cylinder Heads
LS Compatible
262 cc Rectangular Intake Port Flows Over 360 cfm
Exhaust Port Flows 221 cfm
71 cc CNC Ported Combustion Chambers
2.204 / 1.614 Valve Size
1.350 Hydraulic Roller Spring, 180 lb Closed, 430 lb Open,1.885 Installed Height, .700 Maximum Lift
Most Powerful Out-of-the-Box Head in its Class
4.125 Minimum Bore
12 Degree valve angle
Assembled heads
