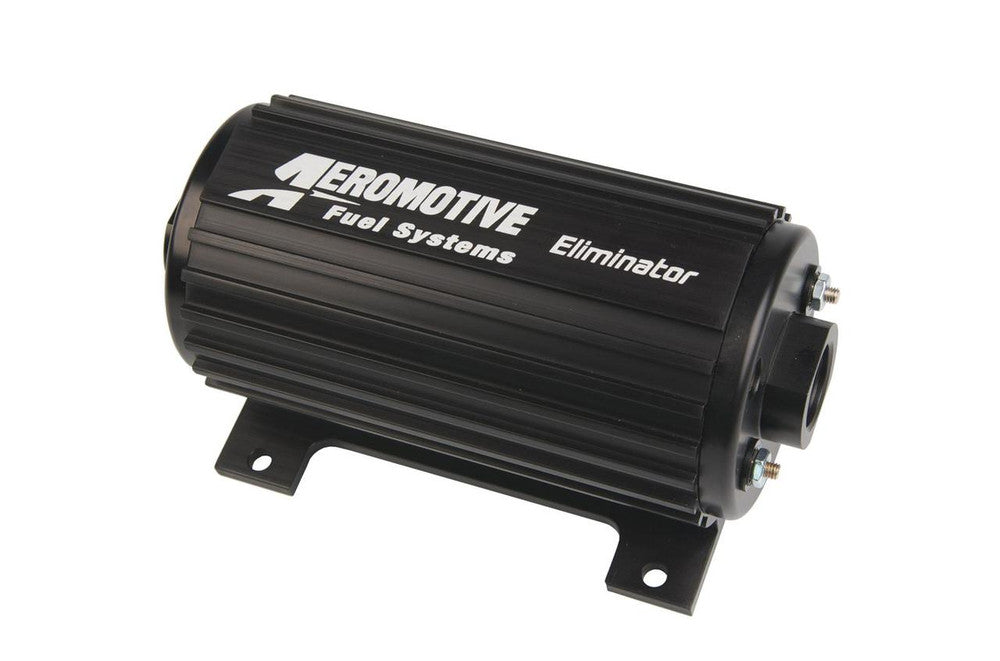

Aeromotive Eliminator Fuel Pumps 11104
Aeromotive Eliminator Fuel Pumps 11104
Pump is rated at 1,300 lbs//hr. at 8 psi and 1,000 lbs./hr. at 45 psi with 13.5 volts. Fully submersible for custom, in-tank placement. A bypass style regulator must be used with this pump. For street driven EFI equipped applications Aeromotive recommends electric fuel pump controller AEI-16306. Maximum continuous operating pressure should not exceed 70 psi.
Free Flow Rate: 216 gph/817 lph
Maximum Pressure (psi): 70 psi
Inlet Size: -12 AN O-ring
Inlet Quantity: One
Inlet Attachment: Female threads
Outlet Size: -10 AN O-ring
Outlet Quantity: One
Outlet Attachment: Female threads
Quantity: Sold individually
Aeromotive continuous duty Eliminator fuel pumps support big horsepower and maintain the driveability necessary for a true high performance street car. Designed for high horsepower street/strip applications, EFI, or carbureted, they feature Aeromotive's "dual chamber" pumping mechanism.
Additional features include:
* -12 AN O-ring boss inlet port and -10 AN O-ring boss outlet port
* Fully submersible for custom in-tank pump placement
* 25 percent more flow at pressure than Aeromotive A1000 fuel pump
* Supports naturally aspirated EFI engines up to 1,900 hp
* Supports forced air induction EFI engines up to 1,400 hp
* Supports naturally aspirated carbureted engines up to 2,300 hp
* Supports forced air induction carbureted engines up to 1,700 hp
