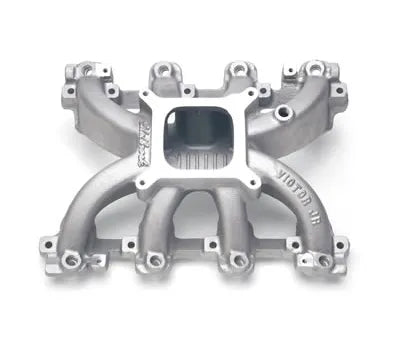

EDELBROCK INTAKE MANIFOLD - VICTOR JR - LS1/LS2/LS6 - EFI - 29085

EDELBROCK INTAKE MANIFOLD - VICTOR JR - LS1/LS2/LS6 - EFI - 29085

This Edelbrock Victor Jr. LS1 EFI Intake Manifolds are a high-rise single plane design capable of supporting up to 600 hp. Like the Edelbrock Performer RPM LS1 intakes, these Victor Jr. LS1 EFI manifolds accept a standard flange throttle body.

These manifolds also include a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions.

Most applications will require hood modification.

• Port Exit Dimensions: 0.98" x 2.74"

• Carb Pad Height: 4.95" with 0° Carb Angle

• Distance from Bolt Hole Centerline to: Port Roof 1.39" and Port Floor 1.35"

• Uses individual LS1/LS6-style individual port O-ring seals

Requires Fuel Rail Kit, #EDL3638, sold seperately
