OUTLAW FRONT SUSPENSION C6 Corvette 05-13

OUTLAW FRONT SUSPENSION C6 Corvette 05-13

$3,115.00 USD
$3,115.00 USD
Sale Sold out
Shipping calculated at checkout.
Manual Rack Kit
Motor Mount Pads

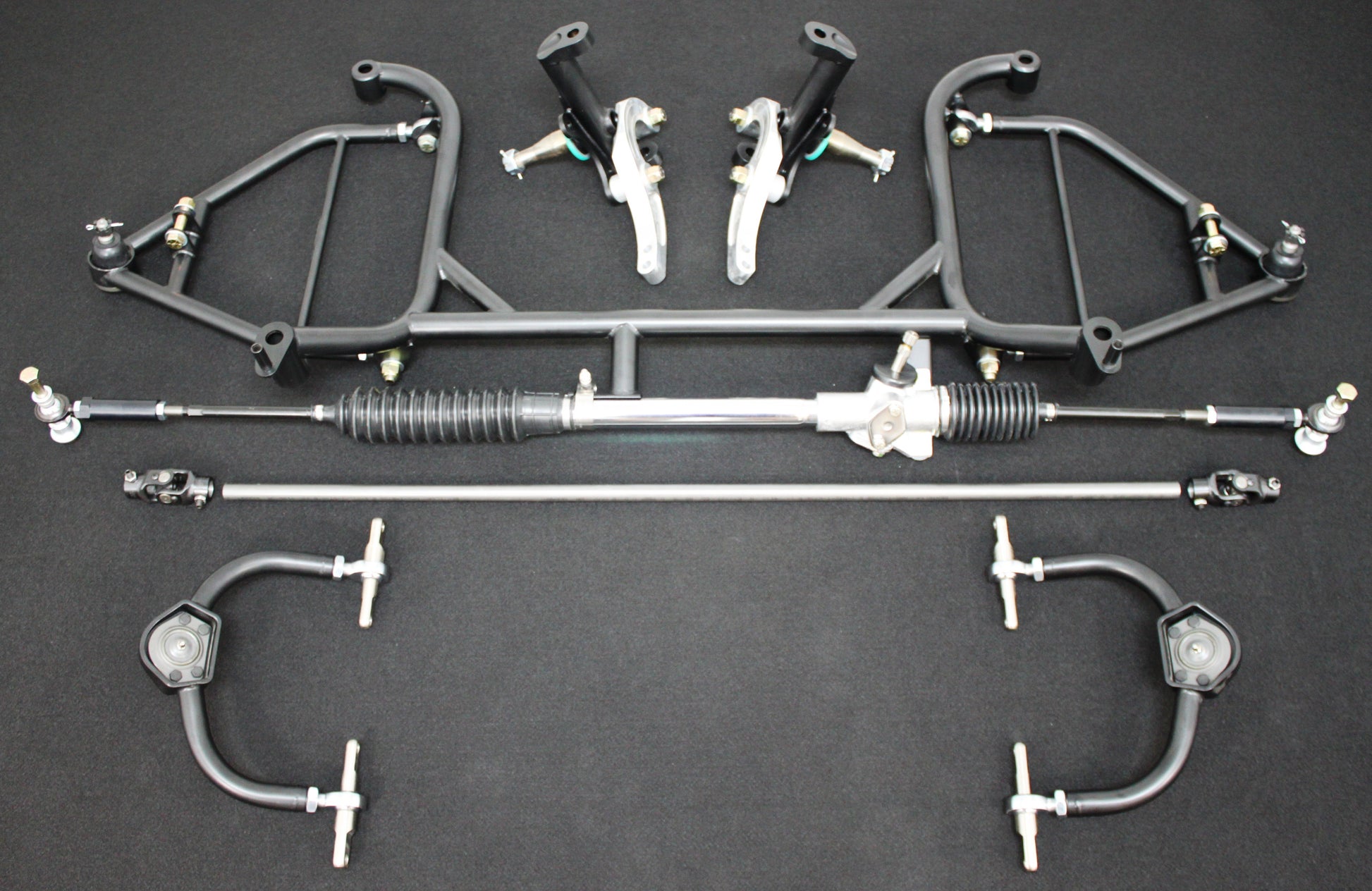

  • Front Suspension Kit Includes:
  • Chrome-Moly K-Member
  • Chrome-Moly Upper and Lower A-Arms utilizing Chrome-Moly Rod Ends
  • Chrome-Moly 1.5″ Drop Spindles that accept Spindle Mount Brakes or Custom Standard Hub Style Brake Kits (will NOT accept a factory type C5 / C6 front brake kit)
  • 6061 Billet Aluminum Steering Arms
  • Rack and Pinion Mounts (if the rack kit option is purchased)



  • Optional Rack Kit Includes:
  • Custom Length Manual Rack and Pinion
  • 6061 LH & RH Tie Rod Adjusters / Bump Steer Kit
  • Steering Shaft, (2) Chrome-Moly U-Joints, and steering column adapter



  • Designed to Replace Stock K-Member and A-Arms and Utilize a Coil-Over Shock
  • Designed for Drag Race Applications ONLY
  • Reduces Weight by up to 95 lbs
  • Narrows Track Width Approximately 1″ per side
  • Built-in 8 to 10 Degrees of Positive Caster
  • Premium Teflon Lined Chrome-Moly Rod-Ends and Chrome-Moly Tubing Used Throughout.
  • Depending on ride height, it uses a 4″ or 5″ stroke coil-over shock (lower shock mounts need to be 1″ wide x 1/2″ ID bearing style)
  • Spindle Design can utilize a Standard 5-lug 5 x 4.75 Hub (B4154WC) / (TBM-001-0210) or a Spindle Mount Wheel (B4597WC) / (TBM-001-0204) and Brake Combination
  • Strange caliper brackets require some grinding to clear these spindles
  • Optional Motor Mount Pads ($150 Extra – This is NOT the Motor Mounts themselves, just the location for them to sit on)
  • This kit will NOT accept stock C5 / C6 Upper and Lower A-arms, brakes, or steering
  • IF YOU HAVE A BRAKE KIT THAT FITS YOUR STOCK C5 / C6 SPINDLES… IT WILL NOT FIT OUR SPINDLE FOR THIS KIT!
